Product Name	Price	Delivery	Qty
WB-400 Drainage Submersible Pump Cód.HID42050015	€73.30 €58.00
WB-750 Drainage Submersible Pump Cód.HID42050020	€96.40 €76.30

Product Description

Aplicações:

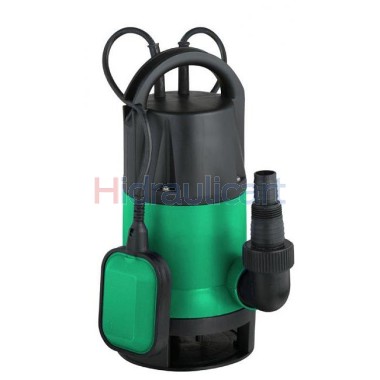

Submersible pumps for draining lightly charged dirty water. Indicated drainage of water from garages or other flooded places. They are supplied with a level switch and output record.

Funcionamento:
Fluid: Slightly charged dirty water
Maximum liquid temperature: 35ºC
Maximum immersion depth: 5 m
Solid passage: 35 mm
Maximum number of starts per hour: 20

Caracterísitcas Construtivas
Pump body: Technopolymer with glass fiber
Pump Base: Technopolymer with glass fiber
Turbine: Noryl
Motor Shaft: Stainless Steel
Seal: Ceramic-graphite mechanical seal (pump side) and sealing ring (retainer) on the motor side
External Float: With built-in switch
Power Cable: 10 m neoprene cable

Motor Eléctrico
Submersible motors with IP68 degree of protection and class B insulation.
Single phase 230 V - 50 Hz with permanent capacitor. For continuous operation, the electric pump must work completely submerged.

Ligações
Ø Output 1 ½ "
