Submersible Sandy Water Pump Large Elevations Tsurumi LH

Recent developments in civil engineering and architectural technologies are increasing the need to dig deeper into the earth. This requires a submersible pump with a robust construction that can withstand high pressures so deep in the water.

Camisa de refrigeração
The pumped water cools the engine and discharges, as illustrated. The engine can be cooled even when pumping a small amount of water. Top discharge allows installation in areas with limited space. The pump can work continuously in air.

Ferro fundido superior ao aluminium
Housing and engine cover in gray cast iron, impeller in chrome cast iron.

Selo portas de alívio de pressão
The faces of the mechanical seal are only subjected to submerged pressure and are protected against water hammer.

Empanque mecanico duplo (SIC/SIC)
Double mechanical seal with silicon carbide faces works inside an oil lift and in an oil chamber. Additional protection by a seal combined with replaceable stainless steel shaft sleeve. This represents the most durable seal available.

Empanque duplo (except for: LH33.0)
Two chromium cast iron impellers increase the pumping power for carrying out high lifts.

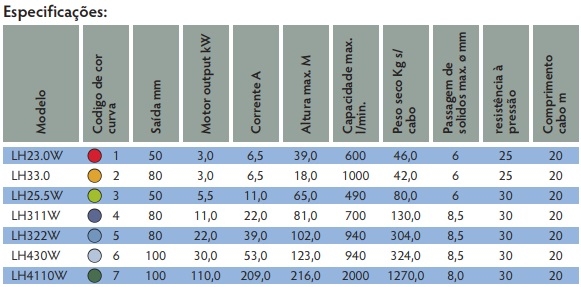

Para mais informação, consulte a Ficha Técnica.
