DAB FEKA VS Submersible Pump

Product Name	Price	Delivery	Qty
FEKA VS 550 M-NA Cód.DAB103040010	€488.00 €360.00
FEKA VS 550 M A Cód.DAB103040000	€492.00 €363.00
FEKA VS 750 M-NA Cód.DAB103040050	€509.00 €375.00
FEKA VS 750 M-A Cód.DAB103040040	€516.00 €380.00
FEKA VS 550 T-NA Cód.DAB103040020	€520.00 €383.00
FEKA VS 750 T-NA Cód.DAB10340060	€547.00 €403.00
FEKA VS 1000 M-NA Cód.DAB103040090	€572.00 €422.00
FEKA VS 1000 M-A Cód.DAB103040080	€575.00 €424.00
FEKA VS 1000 T-NA Cód.DAB103040100	€604.00 €445.00
FEKA VS 1200 M-NA Cód.DAB103040130	€610.00 €450.00
FEKA VS 1200 M-A Cód.DAB103040120	€614.00 €453.00
FEKA VS 1200 T-NA Cód.DAB103040140	€636.00 €469.00

Product Description

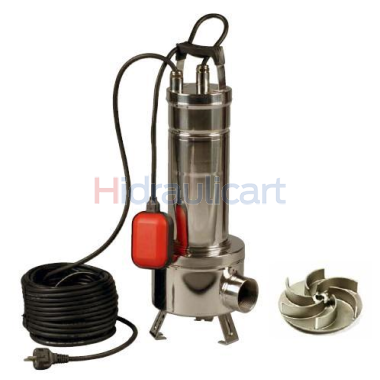

FEKA VS
It is constructed entirely of stainless steel, ideal for lifting black water and general waste water with solids up to 50 mm, in residential and commercial construction services. Certified for lifting waste water according to EN 12050-2 . The pumps are suitable for fixed or mobile installations and are available in automatic version with integrated float switch or in manual version without float. All versions have a handle.

50mm free passage;
Maximum immersion: 7 meters;
Installation: fixed or portable in vertical position;
A - Model with float;
NA - Model without float.

FEATURES Handle covered with insulating rubber. Vortex impeller in retracted position in AISI 304 stainless steel or technopolymer. Double mechanical seal in oil bath, filled with non-toxic oil, in silicon carbide on the pump side and in carbon-alumina on the motor side. Two-pole asynchronous motor, sealed, cooled by the pumped liquid. Motor shaft in AISI 316 stainless steel. Thermal protection incorporated in all single-phase versions.

Flow rate: From 3 m ³ /h (13.2 gpm) to 32 m ³ /h (140.9 gpm) ;
Height: 14m ;
Pumped liquid: non-aggressive wastewater, rainwater;
Free passage: 50mm ;
Liquid temperature:

From 0 to 35ºC for domestic use;
From 0 to 50ºC for other uses;

Output: 2" GAS;
Output direction: Horizontal;
Impeller: Stainless steel Vortex;
Motor protection rating: IP 68 ;
Motor insulation thermal rating: F ;
Power cord type: H05RN-F ;
Possible type of installation: Fixed or Mobile in vertical position;
Maximum immersion depth: 7m ;

Model	Voltage 50Hz	P(kW)	DNM GAS	DN	m ³ /h (0)	3	6	9	12	15	18	24
Model					l/min (0)	50	100	150	200	250	300	400
Feka VS					(m)
550 MA	1x230V	0.55	2"	50	7.4	6.9	6.2	5.6	4.1	3.2	1.8	-
550 M-NA	1x230V	0.55	2"	50	7.4	6.9	6.2	5.6	4.1	3.2	1.8	-
550 T-NA	3x400V	0.55	2"	50	7.4	6.9	6.2	5.6	4.1	3.2	1.8	-
750 MA	1x230V	0.75	2"	50	9.6	9.2	8.5	7.6	6.7	5.6	4.3	1.9
750 M-NA	1x230V	0.75	2"	50	9.6	9.2	8.5	7.6	6.7	5.6	4.3	1.9
750 T-NA	3x400V	0.75	2"	50	9.6	9.2	8.5	7.6	6.7	5.6	4.3	1.9
1000 MA	1x230V	1	2"	50	11.8	11.3	10.5	9.8	9	8	6.8	4.1
1000 M-NA	1x230V	1	2"	50	11.8	11.3	10.5	9.8	9	8	6.8	4.1
1000 T-NA	3x400V	1	2"	50	11.8	11.3	10.5	9.8	9	8	6.8	4.1
1200 MA	1x230V	1.2	2"	50	14	13.4	12.8	12	11.2	10.1	9	6.7
1200 M-NA	1x230V	1.2	2"	50	14	13.4	12.8	12	11.2	10.1	9	6.7
1200 T-NA	3x400V	1.2	2"	50	14	13.4	12.8	12	11.2	10.1	9	6.7
