BAICO Misti Submersible Water Pump with Digital Frame

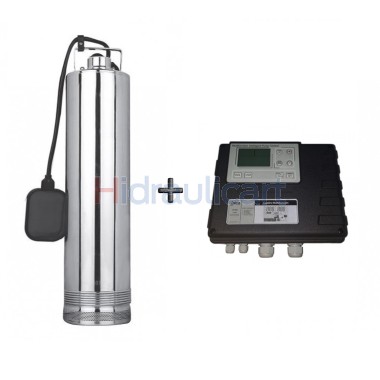

BAICO Misti Submersible Water Pump with Digital Frame

Product Name	Price	Delivery	Qty
BAICO Misti C Submersible Pump 4-35 MA, 230V, w/ Multifunction Board Cód.BAIMISTIC435MAQ	€334.00
BAICO Misti C Submersible Pump 4-55 MA, 230V, w/ Multifunction Board Cód.BAIMISTIC455MAQ	€365.00		Out of stock

Product Description

Bomba Submersível para poço e Quadro de comando Digital Multifunções

Aplicações:

For pressurizing homes, watering gardens, washing areas and for all installations where pressurized water is required, from wells, drilling, lakes, etc. Submersible electric pumps for pumping clean water without suspended solids. Designed for domestic use, sprinkler irrigation and pressure groups. Supplied with automatic float switch.

Funcionamento:
Fluid: Clean waters
Maximum liquid temperature: 35ºC
Maximum immersion depth: 15 m
Passage of solids: 15 g/m3
Maximum number of starts per hour: 25
Minimum pit diameter: 130 mm

Caracterísitcas Construtivas
Pump body: AISI 304 stainless steel
Pump Base: Stainless Steel AISI 304
Shaft: AISI 304 stainless steel
Turbine: PPO
Diffusers: PPO
Mechanical Seal: Double Ceramic / Graphite
External Float: With built-in switch
Power Cable: 15m

Motor Eléctrico
Submersible motors with IP68 degree of protection and class B insulation. Water cooled
Single-phase 230 V - 50 Hz with external permanent capacitor .

Ligações
Ø Output 11/4“

Quadro de Comando e Protecção
Multifunction panel for protection and control of electric pumps with backlit display.
