Aster Sand Filter Lateral Valve

Product Name	Price	Delivery	Qty
Astralpool Aster Pool Filter 500mm Cód.ASTR20611	€752.76 €445.00
Astralpool Aster Pool Filter 600mm Cód.ASTR20612	€814.26 €485.00
Astralpool Aster Pool Filter 600mm Cód.20610VCL56	€720.00 €515.00
Astralpool Aster Pool Filter 750mm Cód.ASTR20613	€1,189.41 €714.00
Astralpool Aster 900mm Pool Filter without selector valve Cód.20614CL56	€1,540.00 €1,090.00

Product Description

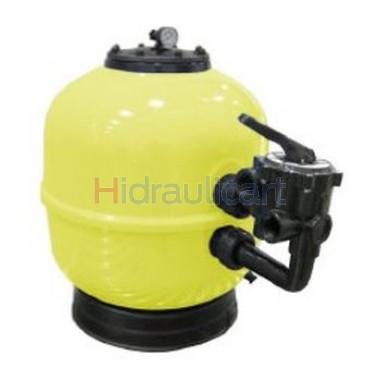

Astralpool laminated filter Aster in polyester and fiberglass.
Yellow color, polypropylene base, lid without screws, plug for water leakage, pressure gauge and side selector valve.
Max. pressure of work 2.5 kg/cm2.
Maximum filtration speed 50 m3/h/m2.

Aster Astralpool Sand Filter

Specification

VOLUME	CIRCULAÇÃO	FILTRACAO	FILTRO	BOMBA
30 m³	8 h	50 m³/h/m²	300 mm.	0,33 HP
40-50 m³	8 h	50 m³/h/m²	400 mm.	0,50 HP
70-80 m³	8 h	50 m³/h/m²	500 mm.	0,50 HP
90-100 m³	8 h	50 m³/h/m²	600 mm.	0,75 HP
100-140 m³	8 h	50 m³/h/m²	750 mm.	1 HP
140-170 m³	8 h	50 m³/h/m²	800 mm.	1,50 HP
170-200 m³	8 h	50 m³/h/m²	900 mm.	2 HP

	Com Válvula Lateral				Sem válvula
	20610	20611	20612	20613	20614
Ø D mm	450	500	600	750	900
H mm	795	770	850	945	1050
M mm	430	415	455	555	660
N mm	305	290	330	325	390
Ligações	1 1/2"	1 1/2"	1 1/2"	2"	2 1/2"
Caudal m³/h a 50m³/h/m²	8	9	14	21	30
Piscina (Volume) m3 (8 h)	64	72	112	168	240
Carga de Areia Kg	70	90	125	210	500
Pressão máx. de trabalho kg/cm²	2,5
Peso líquido kg	15.5	18	21	30	51
Volume embalagem m³	0.18	0.26	0.36	0.6	1.03
